PRICES SUBJECT TO CHANGE WITHOUT NOTICE PLEASE CHECK WITH SALES PERSON
Cornermate Plus Accucutter

CM40

$ 284.00 plus ups

The Cornermate PLUS® is a new intermediate cornering system designed, developed and manufactured by accucutter®It has a wider opening for flexible plastics up to .350" and will accommodate .063" aluminum and other medium weight materials.

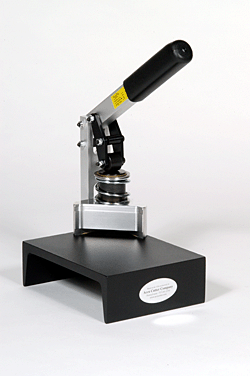

The standard Cornermate PLUS® table features a controlled action roller that moves up and down in a fixed vertical plane like a press. The standard table is shown above with a cutting unit. The standard table is designated the CM60

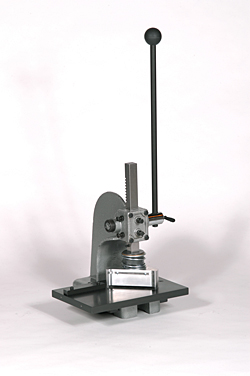

Two enhanced tables based on a small arbor press are now available. The first enhanced table, the CM60AP, was developed for the new slot punch. It provides greater punching power and positions the slot punch square to the operator for more convenient slot punching. It also has tapped holes that can be used to set up stops or guides for repetitive punching. The new table will also work with the round corner units. It is shown below with a slot cutting unit.

The second enhanced table, the CM60SPCL, is also based on a small arbor press and is identical to CM60AP except that a pivoting disc or adapter has been added. The disc/adapter has two positions. In one position, the disc/adapter places  the punch square to the operator for convenient slot punching. In the other position, the disc/adapter places the punch at an angle to the operator for more convenient corner punching. The CM60SPCL also features increased punching power, and the table has tapped holes that can be used to set up stops or guides for repetitive punching.

The tables and cutting units are sold separately.

Cutting Units:
     · Round - 1/2", 3/4" & 1"
     · Slot - 1/4" x 1/2" (For .040" Aluminum & .063" Plastic)

Cornermate PLUS® Capacity:
     · Aluminum................................................. .063" ..... 1.8mm
     · Half Hard Brass........................................ .030" ..... .75mm
     · Flexible Plastic......................................... .350" ....... 9mm
     · Mild Steel................................................. .020" ..... .5mm

Size & Weigh (CM60):
     · Size: 10"L x 6.5"W x 9"H
     · Weight: Approximately 7.50 lbs. (With cutting unit)

CM 80

$ 1,210.00 plus ups



The 080 Cornermate is a new heavy-duty cornering system designed, developed and manufactured by accucutter®. It is for .080" Aluminum and .250" flexible plastic.

The 080 Cornermate system consists of the 080 Cornermate Table and the 080 cutting units. The table includes an adapter plate and a reversible guide to permit the use of all of the 080 cutting units regardless of size. The table is mounted on a standard arbor press.

Like all Cornermate cutting, the alignment system is part of the 080 Cornermate cutting unit so it is always properly aligned. The 080 Cornermate cutting units also have replaceable steel alignment guides. In the event that the guides wear through use, they may be replaced restoring the proper alignment of the cutting unit. Another accucutter® first.

An enhanced version of the 080 Cornermate Table has been developed. The  enhanced table, the CM80SPCL, is also based on an arbor press and very similar to original but with two important differences. It is approximately six inches wider, and a pivoting disc or adapter has been added. The disc/adapter has two positions. In one position, the disc/adapter places  the punch at an angle to the operator for convenient corner punching. In the other position, the disc/adapter places the punch square to the operator for more convenient slot punching. The CM80SPCL table has additional tapped holes that can be used to set up stops or guides for repetitive slot punching. All of the 080 cutting units will work with the CM80SPCL.

The 080 Cornermate tables and cutting units are sold separately.

Cutting Units:
     · Round - 1/2", 3/4", 1" & 1.5"
     · Slot - 1/4" x 1/2" (For .063" Aluminum & Plastic)
     · Slot - 1/4" x 3/4" (For .063" Aluminum & Plastic)

080 Cornermate Capacity:
     · Aluminum................................................. .080"
     · Half Hard Brass......................................... .060"
     · Flexible Plastic.......................................... .250"
     · Mild Steel.................................................. .020"

Size & Weight:
     · Size: 13"L x 12"W x 29"H
     · Weight: Approximately 75 lbs. (With largest cutting unit)
